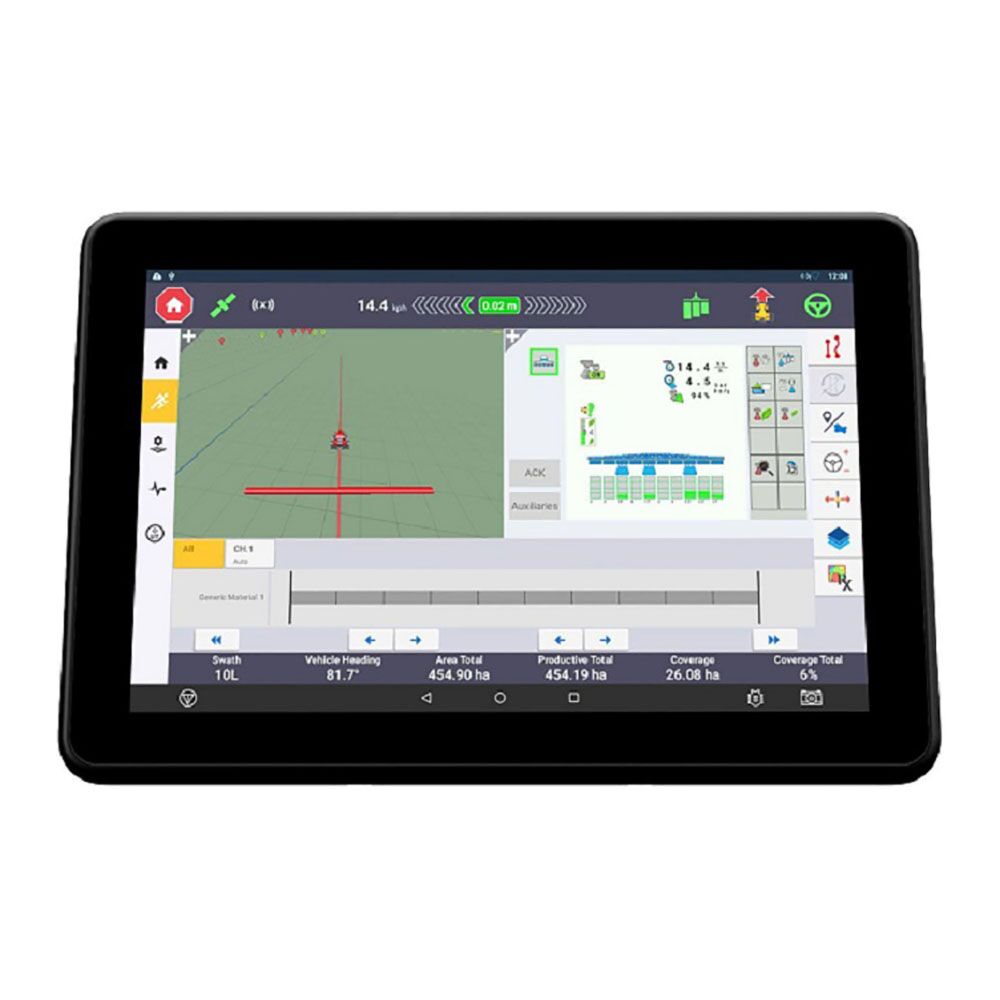

Display Kit, XCN-1060, Base Hardware, CNH - #ZTN138000-81
$1,520.00
AvailableOverview
The XCN-1060™ display is Trimble Agriculture's latest 10-inch (25.6 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ field application interface. With faster processing, greater memory and more storage capacity, this robust display makes handling even the most complex farm operations easy.
The XCN-1060™ display is Trimble Agriculture’s latest 10-inch (25.6 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ field application interface. With faster processing, greater memory and more storage capacity, this robust display makes handling even the most complex farm operations easy.
Your XCN-1060 is delivered in Base Hardware mode.
A Software Activation license is required when it is time to activate the Display for use. Until activation, Precision IQ functionality is not available.
Note: App Central and basic functions such as Wi-Fi and browser do not require the Software activation to work.
Once the software is activated, the Precision IQ App will function, and additional feature licenses can also be purchased and applied to the XCN-1060 as well as the NAV Controller.
The XCN-1060 can be paired either with the NAV-500 or with the NAV-900 guidance controllers.
Features of the XCN-1060 Display:
• 10-inch High quality touch screen (25.6cm)
• Ultra Powerful Quad-Core iMx8 PLUS
• Android OS
• Precision-IQ™ application
• Wi-Fi and Bluetooth compatible
• Trimble Ag software compatible (including wireless transfer)
• Compact design economic on cab space
• RAM Mounting System
• Easy install
• Upgradable with a range of licenses available for additional features including:
o ISOBUS Universal Terminal
o ISOBUS Task Controller
o ISOBUS Multi-Product Control
o Implement: Field IQ™ system
o Prescriptions
o Serial Rate and TUVR
o VRS correction Client
o Auto Asset Detection
o Advanced Guidance Lines
Technical Specifications:
• Resolution: 1280 x 800
• Size: 10″ color (25.6 cm) display – Projected Capacitive (optically bonded)
• Brightness: Brightness 900 (candela/m2)
• System Processor: Quad-Core iMx8 PLUS, 1x Cortex A72@1.6GHz, 4x Cortex A53@1.2GHz, 4 GB
• Storage (eMMC/RAM): 32 GB
• Operating System: Android 9.0
• Internal GNSS: Requires NAV-500 or 900 Controller Receiver
Mechanical
• Dimensions: Cast aluminum with stainless steel fixing screws – L 268.75 mm x W 186.9 mm x D 49.5 mm (at connector belt)
• Weight: 2.0 kgs (4.4 lbs)
• Mount: RAM 1.5″ Diamond 2 bolt
Environmental
• Rating: IP66
• Operational Temp: -20 °C to 60 °C (-4 °F to 140 °F)
Connections
• Power/CAN: Deutsch DT15-6p
• USB (2 x side facing): USB 2.0 Type A (1 Host, 1 OTG)
• Wi-Fi: Integrated 802.11b/g/n/ac (2.4 & 5 GHz*) *May vary depending on country compliance
• Bluetooth: Bluetooth 5
• Expansion Port (I): (RS-232, 2 I/O) – M12 B-code – Female 5 pin (blue insert) – (Imp Lift, Radar Out, or Video In (PAL/NTSC)
• Expansion Port (II): (RS-232, 2 I/O CAN) – M16 Female 8 Pin (Red insert) – (Imp Lift, Radar Out, or Video In (PAL/NTSC) CANx2
